CV568 Miniature Global Camera with Genlock (3GSDI & HDMI)

CV568 Miniature

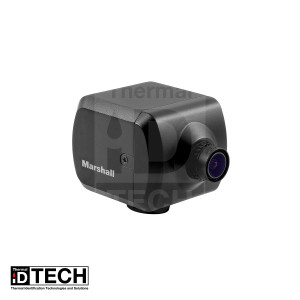

The compact and versatile CV568 Miniature 1080p 3G-SDI/HDMI Camera with Global Shutter & Genlock from Marshall Electronics captures at frame rates up to 60p, and its tiny size makes it ideal for a POV camera. It is suitable for use in live broadcast productions, courtrooms, corporate videos, government assemblies, sportscasts, newscasts, reality television, concerts, and houses of worship. It features a 3.2MP CMOS sensor with 1920 x 1080 resolution and outputs 3G/HD-SDI and HDMI. Its global shutter allows you to capture motion more efficiently without any anomalies or artifacts.

The M12 lens mount enables mounting a large assortment of separately available lenses, and the camera includes a 4.4mm lens with an 84° angle of view. Image tools include genlock, image mirror/flip, digital noise reduction, auto white balance (AWB), and digital zoom. Genlock, RS-485, power, and audio are handled by the breakout cable, and it lets you connect a mic- or line-level input device. In addition, you can also control the camera via RS-485 serial control protocol.

New Global Shutter CMOS Technology

Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.

Genlock Tri-Level Sync Feature

Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.

25% Larger Pixel Size

Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size.

Durable, Flexible, Powerful

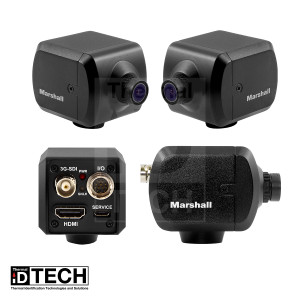

Marshall Miniature Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.

Features:

• Sony 1/1.8" Exmor Global Sensor
• 3.2MP with 25% larger physical pixel size
• Simultaneous HDMI & 3GSDI outputs
• Interchangeable M12 Lenses - comes with a 4.4mm (84°)
• Global Shutter with Tri-Level Sync (Genlock)

  • SMPTE 424M (2.97Gbps) - 3GSDI:
  • 1920x1080p @ 50, 59.94, 60fps
  • SMPTE 292M (1.485Gbps) - HDSDI:
  • 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
  • 1920x1080i @ 50, 59.94, 60fps
  • 1280x720p @ 50, 59.94, 60fps
• Low Light sensitivity (0.05 Lux) with ability to capture IR wavelengths
• Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
• Microphone/Line Level input with 2.5V Mic bias
• Color Matrix to be offered as firmware update (coming soon)
• Environmental: -10°C ~ 50°C
• Power Consumption: 6W

Applications:

• Broadcast
• Production
• Sports
• Racing
• Newscast
• Weathercast
• Live Events
• Aerospace
• House of Worship
• Courtroom
• Government
• Education
• eSports
• Nature
• Live Concert
• Podcast
• Studio
• Stage
• Science and Technology
