CV630-NDI (Black) or CV630-NDIW (White)

CV630-IP PTZ

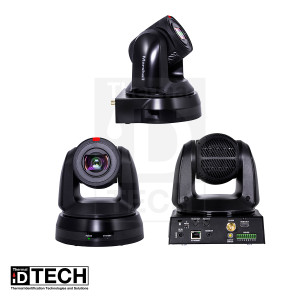

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution. NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow.

High Performance Video Output
Featuring NDI®|HX with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps, with support for HD resolutions.

Versatile Camera Positioning
The CV630-NDI is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.

Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and NDI®|HX. Install one-cable to camera with NDI®|HX for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

Flexible Control Options
The CV630-NDI offers easy control over broadcast settings controllable from NDI® Tools such as NDI Studio Monitor and other NDI® Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.

Features:

• 8MP 1/2.5" sensor
• 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
• Simultaneous 3GSDI and HDMI with NDI®|HX plug and play
• Simultaneous pan, tilt, and zoom
• NDI®|HX 3840x2160p, 1920x1080p, and 1280x720p
• Stereo audio input (mic or line level) embedding
• PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
• 340° pan, 120° tilt, and 30X zoom range
• Simply Connect to any Ethernet Port - THAT'S IT
• Video, Audio, Control, Tally, and Power (PoE+) over ONE ETHERNET CABLE

Applications:

• Live NDI®|HX broadcast production
• Newscast
• Concerts
• Reality Television
• Corporate Communications
• Government
• Courtroom
• House of Worship
• Education
• And many more broadcast and Professional AV applications

NDI® and NDI®|HX are registered trademarks of NewTek, Inc.
