TSC TTP-345 (300 DPI)

TTP-345 Series

Key Features

• Thermal Transfer Desktop Printer
• 300 dpi
• Max. Print Width: 4.17"
• Max Print Length: 40"
• Max. Print Speed: 5 ips.

Industry-leading Performance At A Budget Price

The new TTP-345 thermal transfer desktop barcode printer series delivers more performance for the price than any other printer in its class. The TTP-345 – offers high resolution 300 dpi printing at 5 inches per second. Printer offer 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader.

TTP-345 series offers USB 2.0, parallel and serial connectivity, plus an optional Ethernet port for networking. It also incorporates the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ™ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.

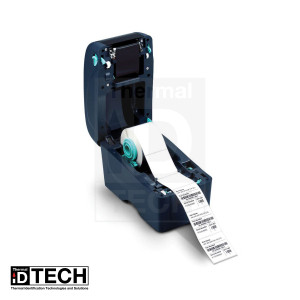

Features a user-friendly clamshell design for easy drop-in media loading, along with a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its innovative two-motor gear-driven engine is powerful enough to handle a 300-meter-long ribbon and label rolls up to 8.4 inches in diameter.

By using two motors instead of the usual one, TTP-345 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life. The platform’s user-friendly design makes it easy for operators to load and unload ribbons, and its 300-meter capacity is more than four times the industry-standard length for desktop printers.

The TTP-345 series holds up to a 5-inch OD roll on a 1-inch core and, using an optional external media hanger, can accommodate a full 8.4-inch OD label roll on a 3-inch core. With its many performance features and budget-friendly price, the TTP-345 series is by far one of the most attractive thermal transfer barcode printers on the market.

Key Features

• Up to 177.8 mm (7”) per sec. print speed
• 4 MB Flash memory and 8 MB SDRAM memory
• SD Flash memory expansion up to 4 GB
• User-friendly clamshell design
• Label gap sensor & full-range adjustable black mark sensor
• Parallel, serial & USB 2.0 interfaces
• Main board integrated with internal Ethernet (factory option)
• Label capacity up to 214 mm OD (8.4” OD)
• Ribbon capacity up to 300 m (984’)
• TSPL-EZ™ firmware for plug-n-play ease
• Optional peel-off module, cutter module, stand-alone keyboard and scanner

Applications

• Business/ office
• Product marking
• Compliance labeling
• Asset tracking
• Document management
• Shelf-labeling
• Shipping/ receiving
• Specimen labeling
• Inventory control
• Patient tracking
