Thermal Tornado, Can and Bottle Label Applicator

(No reviews yet)
SKU: AP-10054422

Call us for Pricing: 888-958-5611

Current Stock:

General Description:

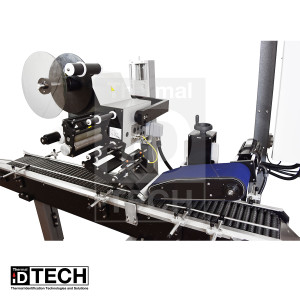

The Thermal TORNADO is designed to apply pressure-sensitive labels to round containers. And, with just a tap of its one-touch screen, you can easily adjust the settings to apply labels to one side of at-surfaced containers. The machine’s speed adjusts according to your container’s surface. It also applicates on wet product surfaces!

SPECIFICATIONS

 Label Types  Wrap around / One side apply optional
 Maximum Dispensing
 Speed

 131.2’/min (40m/min) *Up to 4,000 products a shift.

 Maximum Conveyor
 Speed
 72.2’/min (22m/min) *optional customization
 Dimensions  L 79” x W 40” x H 41” (2006mm x  1016mm x 1041mm)
 Max Label Size  6” x 11.8” (152mm x 300mm)
 Max Container Width  4” (101mm) *6” (152mm) Optional
 Conveyor Width/Height

 3.25” (82.55mm) / 31.75-47.75  (806-1213mm)

 Spool Diameter  14” (356mm)
 Inner Core  3” (76mm)
 Voltage  110/220 VAC 50/60 HZ 1 Phase
 Net Weight  Approx 330 lbs (150 kgs)
 Controls  Delta Color Touch Screen



** DIVERSE RANGE OF CONTAINER SIZES, FAST AND EASY
